Hot-Dip Galvanized 4-Tier Steel Barrel Racks for Humid Cellars
Model: HM-BR066 | Barrel Storage Racks | Hot-Dip Galvanized Finish
Product Summary
Our hot-dip galvanized barrel storage racks, model HM-BR066, are engineered for exceptional durability in demanding environments. The hot-dip galvanized finish offers superior corrosion resistance, making them ideal for humid cellars and outdoor storage. They provide secure 4-tier stacking and are compatible with 50L to 500L barrels, ensuring efficient use of vertical space.
Key Selling Points
- Hot-Dip Galvanized Finish: Provides long-lasting corrosion resistance, extending the rack's service life even in high-humidity environments.
- 4-Tier Stacking: Achieve up to 75% reduction in floor footprint, maximizing storage capacity in limited spaces.
- Universal Barrel Compatibility: Fits 225L Bordeaux, 228L Burgundy, and other 50L-500L barrel sizes, offering flexibility for diverse operations.
- Reinforced Structure: Heavy-grade steel with reinforced joints and stress-point welding supports over 1,000 kg per rack unit.
- Forklift Optimized: Designed for efficient handling with standard cellar forklifts and pallet lifters.
Technical Specifications
| Parameter | Value |
|---|
| Exterior Dimensions (LxWxH) | 1130 x 775 x 453 mm |
| Capacity | 50L, 200L, 225L, 300L, 500L |
| Stackability | 4 high |
| Material | Mild Steel Q235 |
| Finish | Hot-Dip Galvanized |
| Loading Capacity per Rack | Over 1,000 kg |
| Loaded in 1x40'HQ | 234 sets |
Models and Options
Model HM-BR066 is available with the following finishes to suit different environments:
- Zinc Plated
- Hot-Dip Galvanized
- Powder Coating
Capacity options range from 50L to 500L barrels, allowing customization based on your specific storage needs.
Materials and Structure
Manufactured from high-grade mild steel Q235, the rack features a robust welded structure with reinforced joints and stress-point welding for maximum durability. The hot-dip galvanized finish provides superior corrosion resistance, making it suitable for humid cellars with 70-85% relative humidity. The interlocking base design ensures stable stacking, and the open structure allows for efficient air circulation around barrels.
Applications
These barrel storage racks are perfect for:
- High-capacity commercial wineries
- Industrial aging facilities
- Boutique vineyards
- Large-scale wine storage logistics
- Warehousing and logistics centers
- Outdoor storage with extreme weather
They are especially suited for humid aging cellars and high-throughput operations requiring frequent forklift handling.
Customization
We offer customization options including:
- Finish selection: Zinc, Hot-Dip Galvanized, or Powder Coating
- Barrel capacity adaptation from 50L to 500L
- Dimension adjustments to fit specific barrel sizes
- Color options for powder coating
Contact us to discuss your specific requirements.
Frequently Asked Questions
Q1: What is the advantage of hot-dip galvanized over zinc plated?
A: Hot-dip galvanizing provides a thicker, more durable zinc coating, offering superior corrosion resistance, especially suitable for harsh or high-humidity environments.
Q2: Can these racks be used outdoors?
A: Yes, the hot-dip galvanized finish is ideal for outdoor applications and provides long-term protection against rust.
Q3: What is the maximum load per rack?
A: Each rack is designed to support over 1,000 kg of evenly distributed weight.
Q4: Are these racks compatible with standard forklifts?
A: Yes, they are optimized for standard cellar forklifts and electric pallet stackers.
Q5: What is the MOQ for this product?
A: The minimum order quantity is 1x20GP container.
Q6: What delivery methods are available?
A: We support EXW, FOB, CIF, DDP, and DDU delivery terms.
Q7: How is payment arranged?
A: Common payment terms are T/T (30% advance, 70% against B/L) and L/C.
Q8: Do you offer quality inspections?
A: Yes, we offer pre-shipment inspection and accept third-party inspections.
Inquiry Information
For more details or to request a quote, please contact:
- Contact: MARY KONG
- Email: mary@net-railing.com
- Tel/WhatsApp: +86 150 4058 7228
- Phone: +86 411-3981 3061
We look forward to serving your barrel storage needs.
Product Images

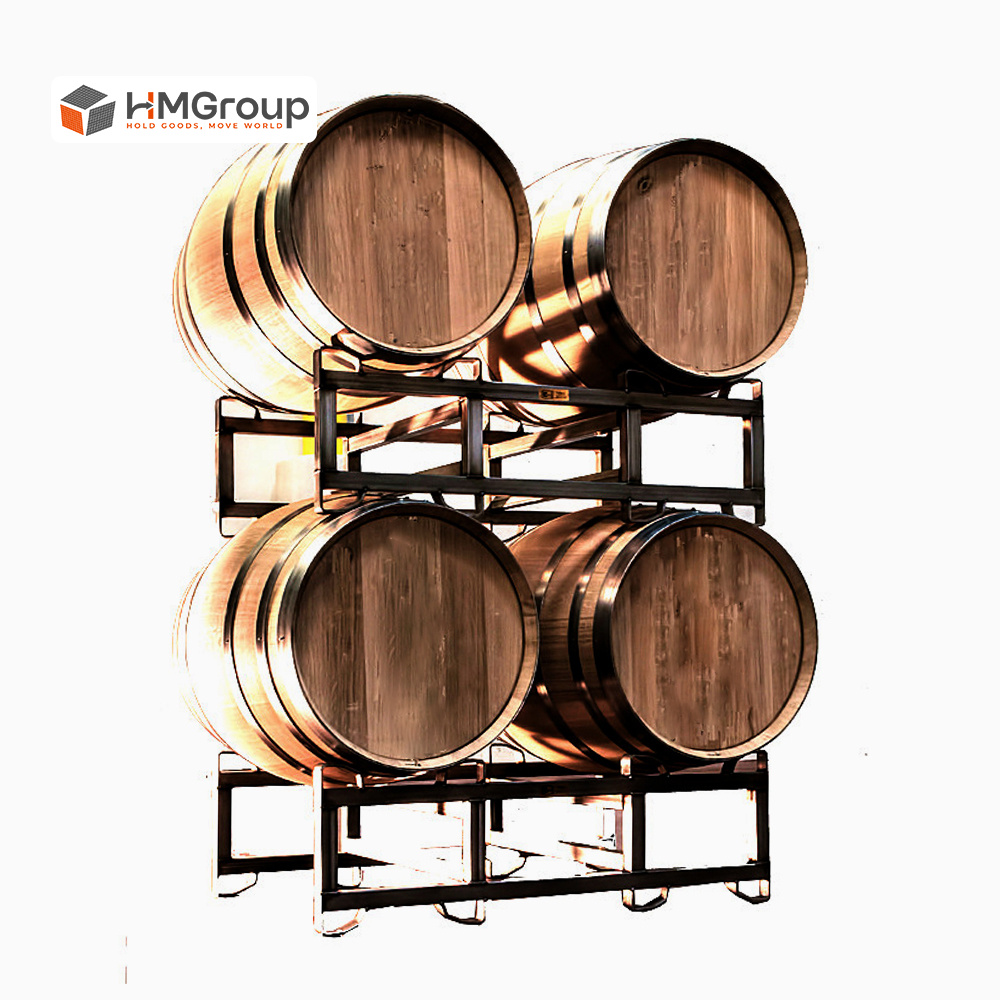

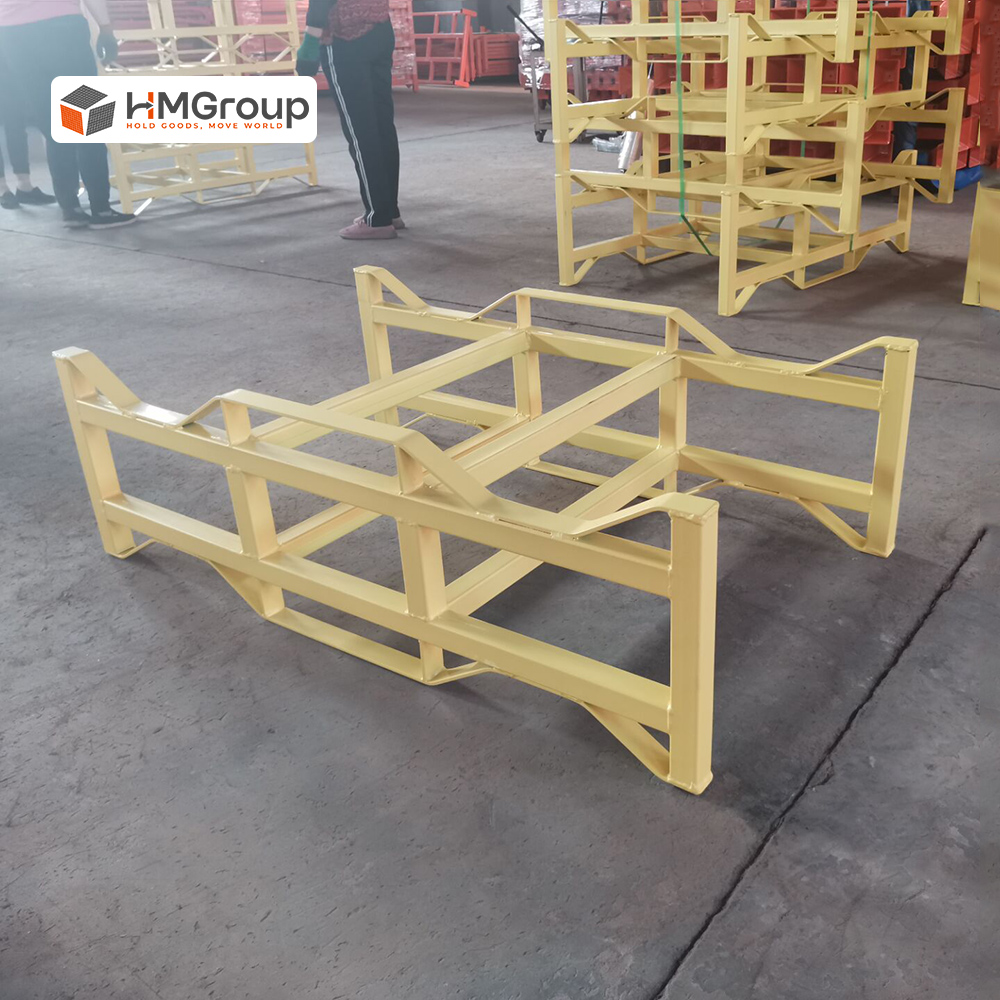

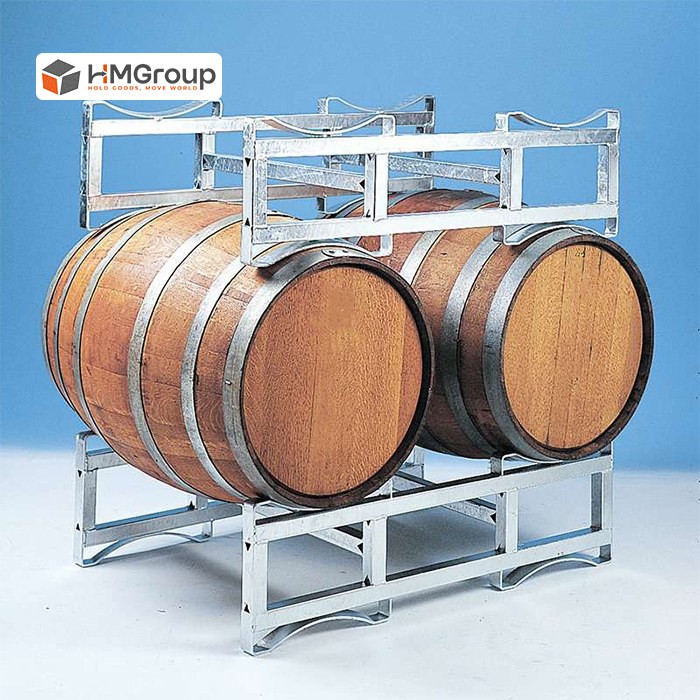

Image 1: Hot-Dip Galvanized Finish | Image 2: Side View | Image 3: Detail
