2000kg Capacity Zinc Coated Warehouse Storage Rack HM-PP002
Efficient vertical storage for heavy industrial goods
Product Summary
The HM-PP002 warehouse storage rack is a robust steel pallet rack designed for high-density storage in demanding warehouse environments. With a loading capacity of 2000 kg and stackability of 4 high, this rack maximizes vertical space utilization while maintaining structural integrity. The zinc coating provides effective corrosion resistance, extending service life in humid or cold storage conditions. Ideal for textile rolls, agricultural produce, and general logistics, this rack supports efficient forklift handling and reduces storage footprint.
Key Selling Points
- 2000 kg Loading Capacity: supports heavy loads per rack;

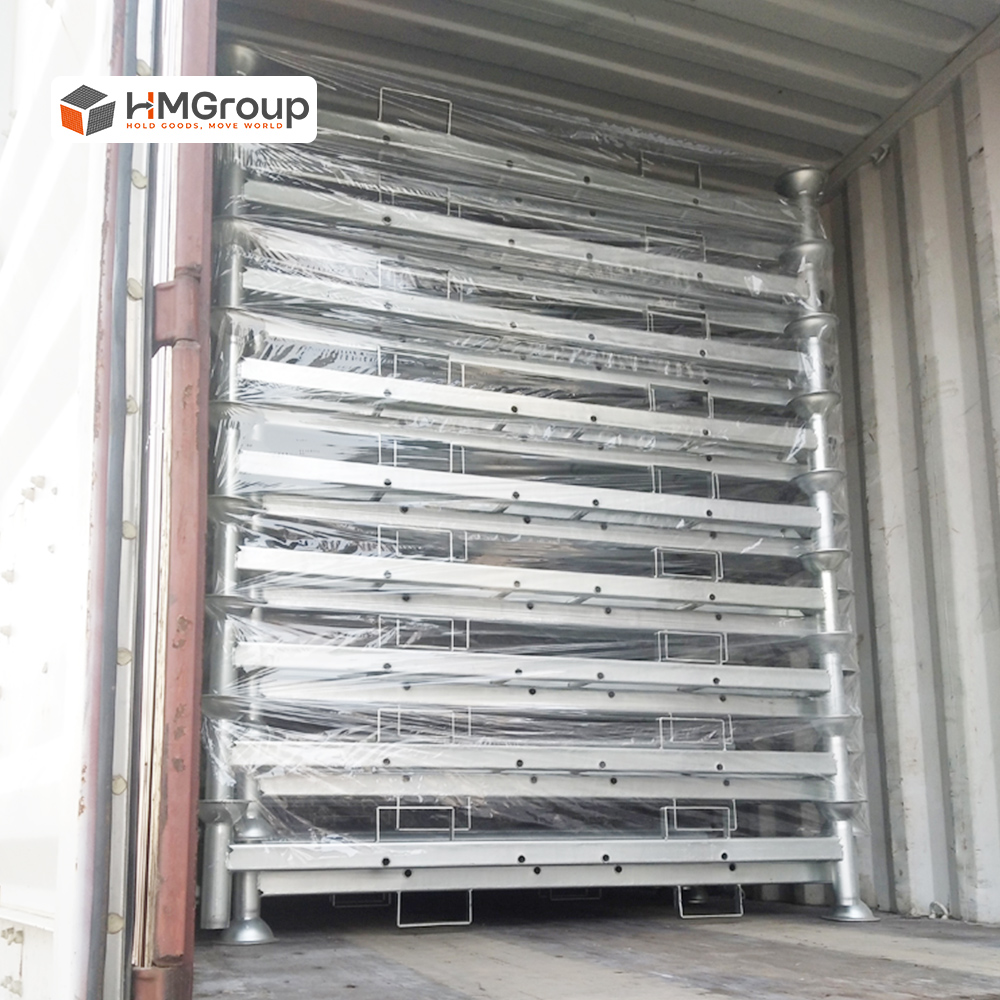

- 4-High Stackability: up to 4 racks high to maximize vertical storage;
- Zinc Coated Finish: corrosion-resistant for long-term durability;
- Mild Steel Q235 Construction: strong and reliable for industrial use;
- Efficient Space Utilization: reduces warehouse footprint by stacking without fixed racking;
- Certified Quality: SGS survey report and TUV inspection report available.
Technical Specifications
| Model | HM-PP002 |
| Base Size | 1875×1060×310 mm |
| Post Size | φ60×2.5 mm |
| Loading Capacity | 2000 kg |
| Stackability | 4 high |
| Finish | Zinc / hot-dip galvanized / powder coating |
| Material | Mild steel Q235 |
| Loading per 40'HQ | 160 sets |
Models and Options
HM-PP002 is available in different finishes: zinc, hot-dip galvanized, and powder coating. Post heights and base dimensions can be customized to suit specific cargo profiles.
Materials and Structure

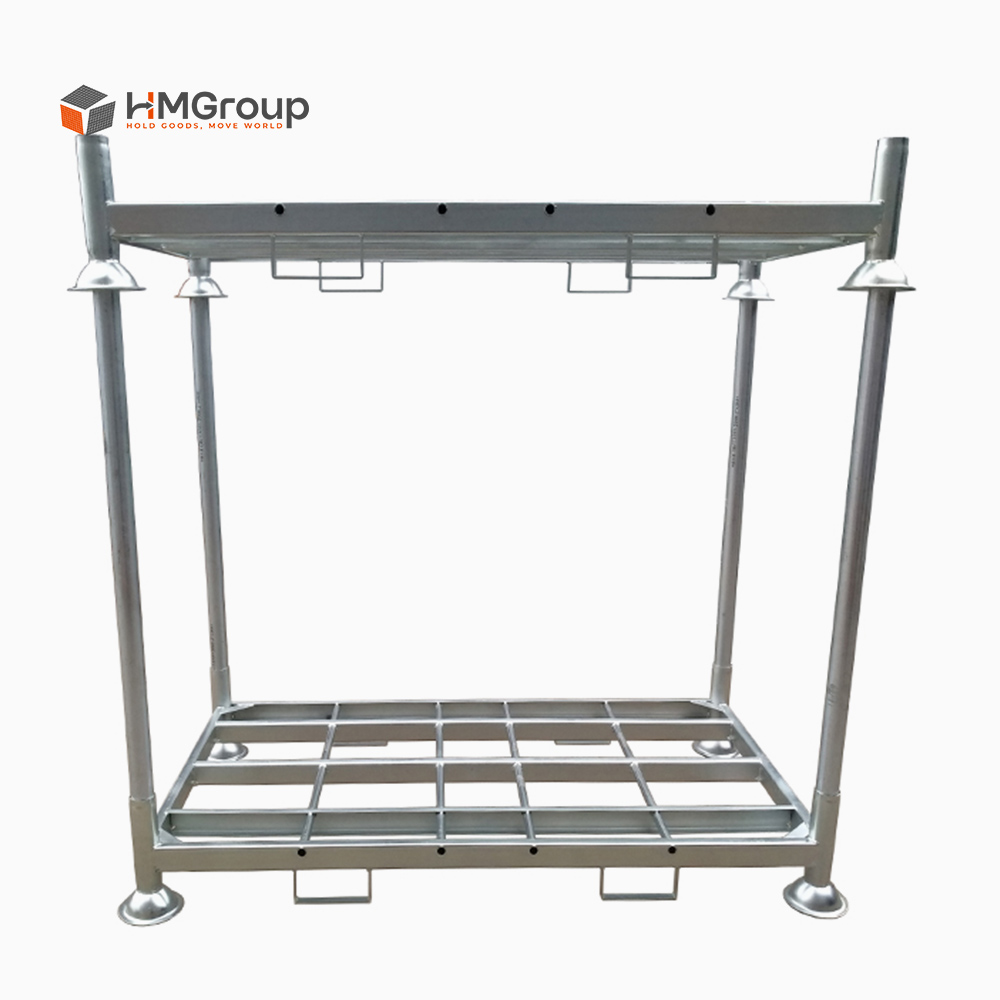

Constructed from mild steel Q235, the rack features a welded base and posts with a diameter of 60mm and wall thickness of 2.5mm. The anti-skid stacking cups ensure precise alignment and stability during stacking. The surface treatment (zinc, hot-dip galvanized, or powder coating) enhances corrosion resistance and withstands demanding environments.
Applications
This warehouse storage rack is suitable for a wide range of industries including textile and fabric roll storage, logistics and warehousing, food and grocery, agricultural produce, and furniture industry. It supports dynamic warehouse operations, cold room storage (down to -30°C), and temporary staging areas for cross-docking.
Customization
We offer customization of post heights, base sizes, and surface finishes to meet specific load and environmental requirements. Contact us for details.
Case Study
United Nations (UNOPS) Project: HM Group supplied 5,000 units of heavy-duty storage racks for vertical organization of rice seeds in cold storage facilities in Myanmar. The racks achieved 6-high vertical stacking, expanding storage capacity by 500% and reducing loading/unloading time by 40%.
FAQ
What is the maximum load capacity of this rack?
The HM-PP002 can hold up to 2000 kg per unit.
Can these racks be stacked? How many high?
Yes, the racks are stackable up to 4 high under proper usage.
What finishes are available?
Zinc, hot-dip galvanized, and powder coating finishes are available.
What materials are used in construction?
Mild steel Q235 is used for the frame, ensuring strength and durability.
Can these racks be used in cold storage?
Yes, they are suitable for cold room environments down to -30°C, especially with hot-dip galvanized or powder coating finishes.
What is the MOQ?
The minimum order quantity is 1x20GP container.
Do you offer customization?
Yes, we can customize post heights, base sizes, and finishes to meet specific requirements.
What certifications do you have?
We have ISO9001, SGS survey report, TUV inspection report, and BV audit report.
